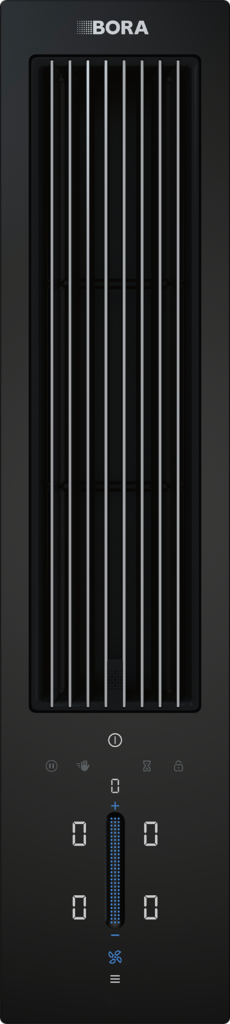

BORA Classic cooktop extractor

Product information

  • The cooktop and extractor are ideal for flush installation. The perfect lines allow them to blend in discreetly and elegantly with any modern kitchen design. When on standby, the operating panel is virtually invisible and during operation it is scaled down to the essentials thanks to intelligent lighting.
  • The unique operating panel is simpler than ever: it works intuitively with a swipe of your index finger up or down in the smooth hollow or a tap with your fingertip. All important functions can be accessed with a single touch.
  • All main functions can be directly selected using a touch control.
  • Always extremely quiet – even on high power levels: this is due to optimum airflow and the use of an extremely quiet fan in the kitchen plinth area. So it won’t distract you from your cooking and your conversations won’t be disturbed.
  • All parts that come into contact with cooking vapours can be easily removed through the accessible, wide inlet opening. They can then be cleaned in the dishwasher, where they take up very little space.
  • When activated, the controls are locked for 10 seconds so that the surface can be cleaned. The remaining time can be seen counting down in the timer window. All device settings remain unchanged in the meantime.
  • If anything is spilt during cooking, the integrated drip tray safely catches both solids and liquids.
  • Compared to other frequently-used filter materials, such as aluminium, the stainless steel grease filter will not perish with ongoing cleaning in the dishwasher, retaining its original appearance (no yellowing) and stability.
  • Thanks to the compact dimensions and a cooktop depth of 515 mm, the system is suitable for standard kitchen units (60 cm from the front edge) as supplied by all current manufacturers.
  • The extractor power level automatically adjusts itself according to current cooking conditions. There’s no need for constant manual adjustment, which means you can focus fully on your cooking.
  • Suitable for: Classic 2.0

Technical data

Power levels 1 – 5, P­
Connection on the exhaust side BORA Ecotube
Weight (incl. accessories/packaging) 7,35 kg
Supply voltage 220 – 240 V
Frequency 50/60 Hz
Maximum power consumption max. 550 W
Fuse protection (internal) TR 3.15 A
Power supply cable 1 m (F, G, J, I)

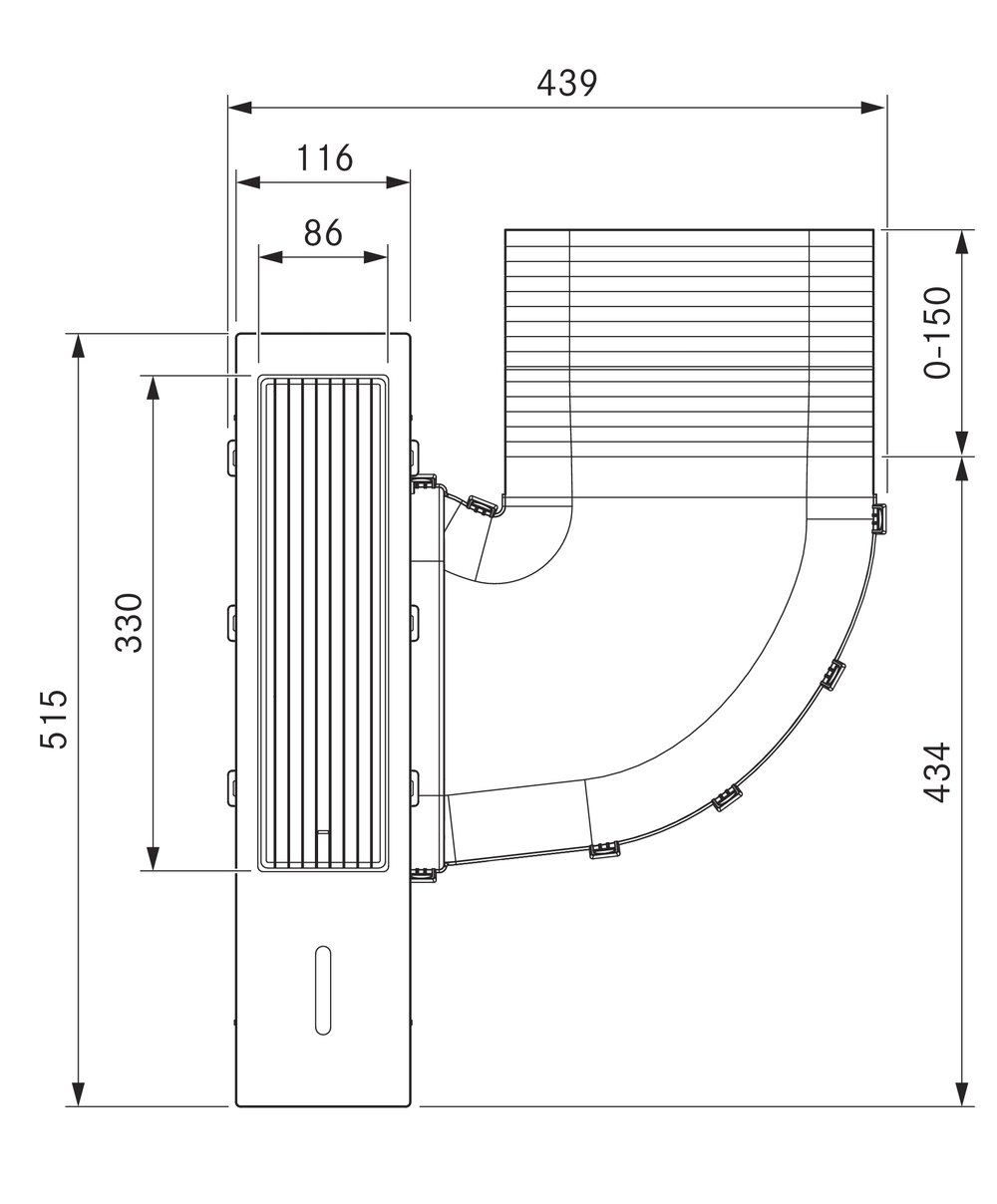

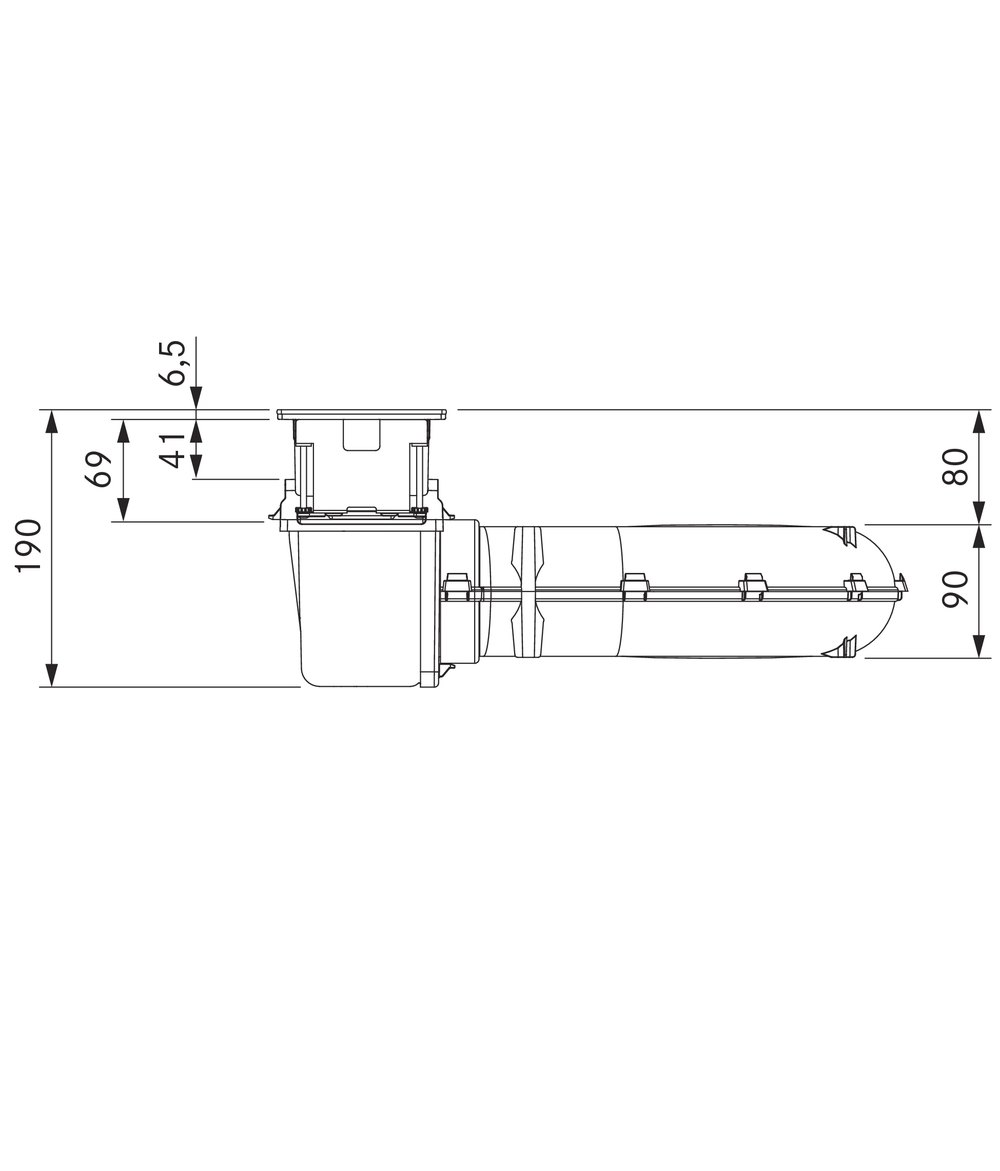

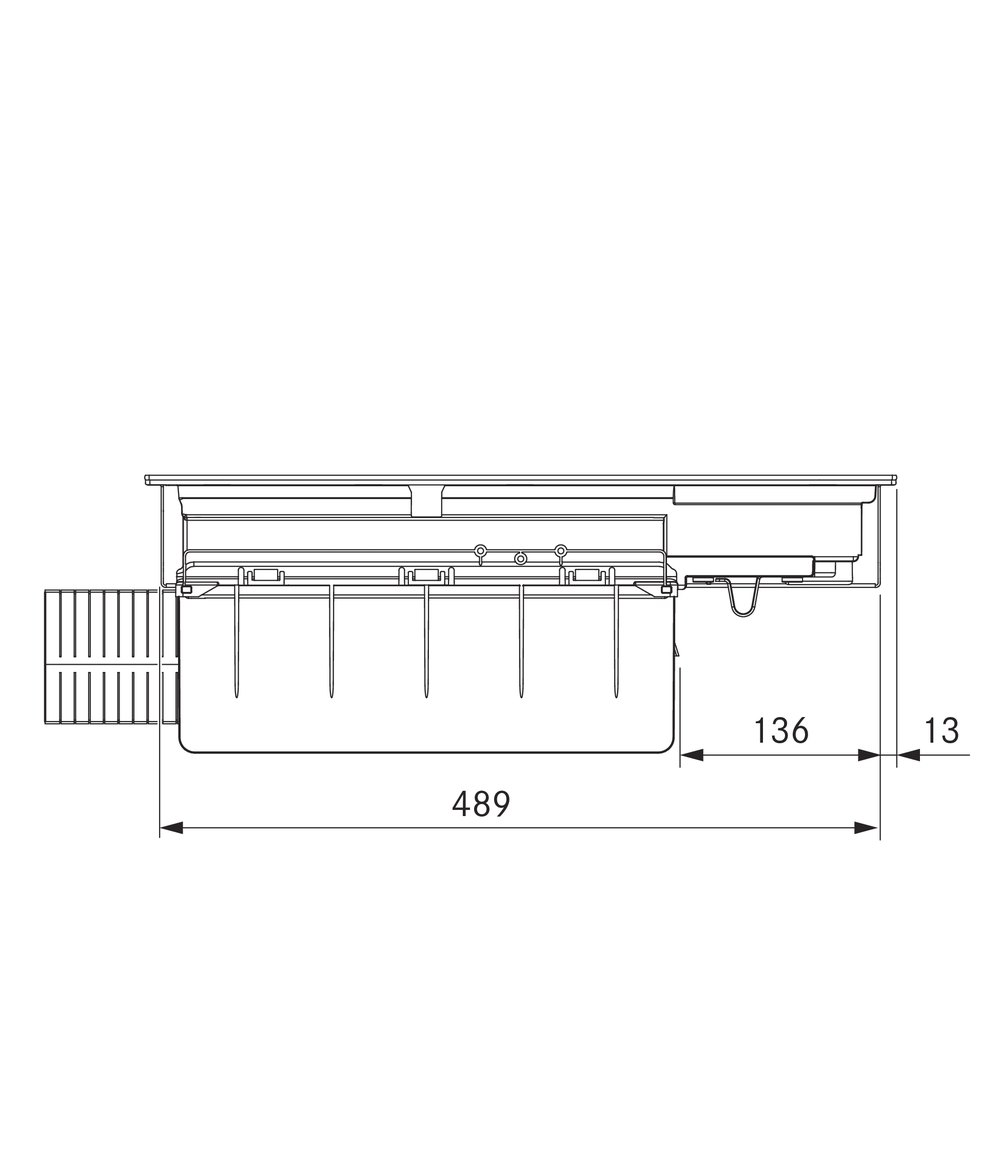

Dimensions (WxDxH) 439 x 515 x 190 mm
Surface material Glass SSG/stainless steel 1.4301
