| Maximum air volume |
658.8 m³/h |
| Supply voltage |
380 – 415 V 2N/3N |
| Supply voltage |
220 – 240 V |
| Frequency |
50 / 60 Hz |
| Maximum power consumption |
7.6 kW (4.4 kW) |
| Fuse protection / power supply |
3 x 16 A |
| Fuse protection / power supply |
2 x 16 A |
| Fuse protection / power supply |
1 x 32 A |
| Weight (incl. accessories/packaging) |
Approx. 25 kg |

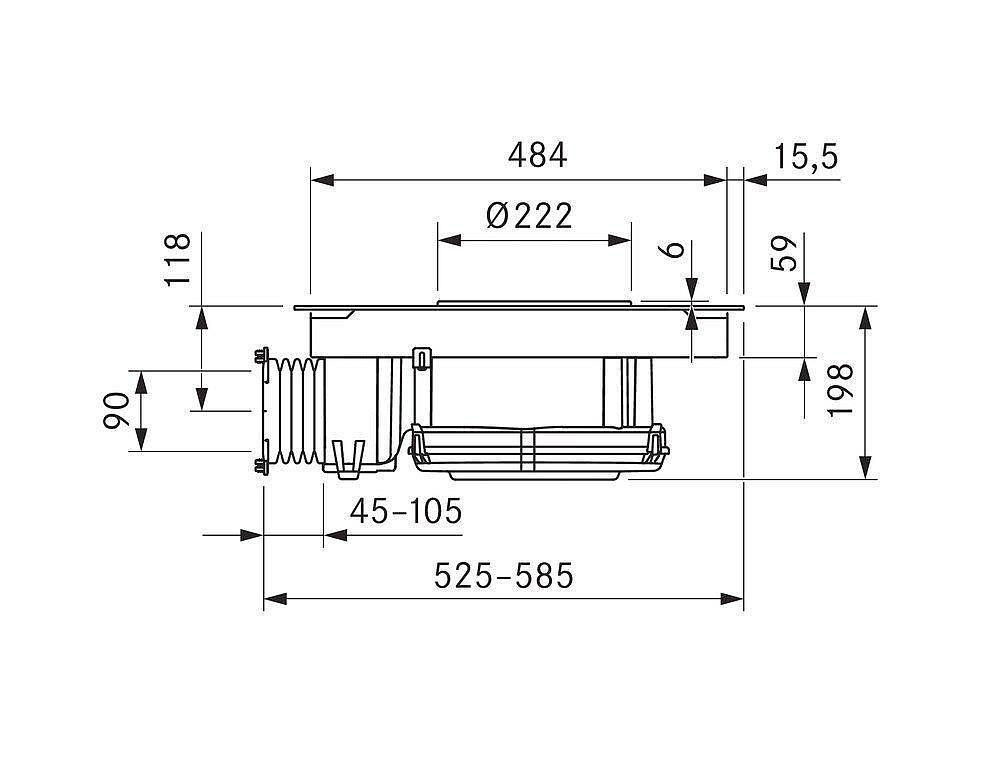

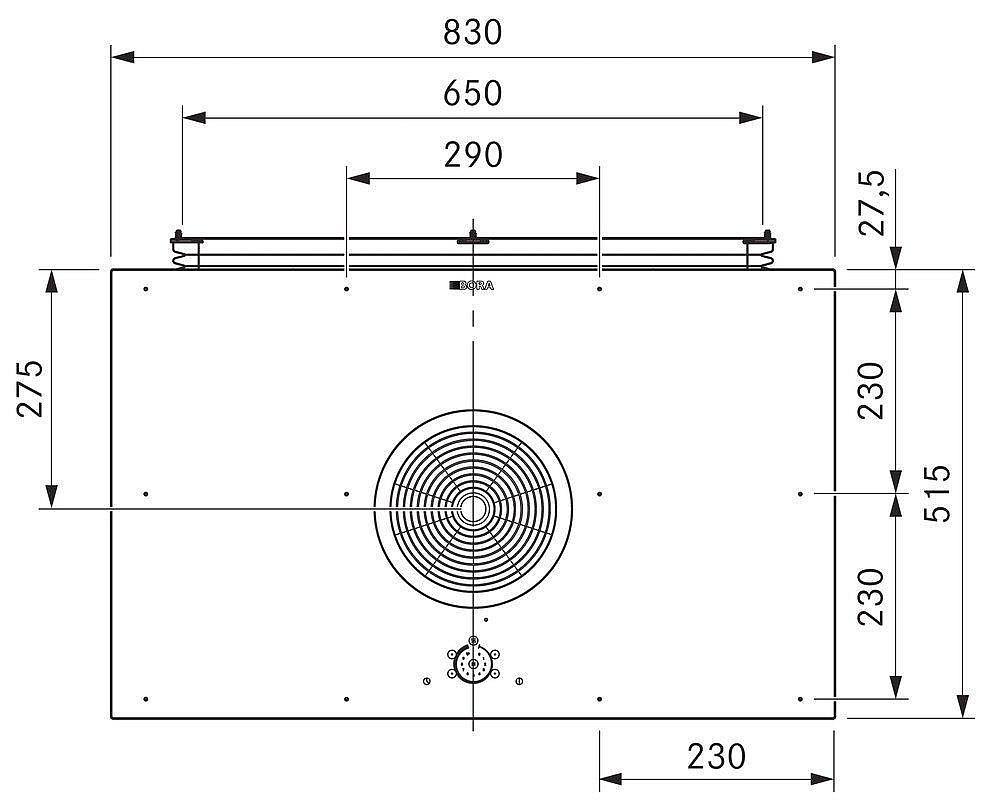

| Dimensions (WxDxH) |
830 x 515 x 198 mm |
| Power levels |
1 – 9, P |
| Front cooking zone dimensions |
230 x 230 mm |
| Front cooking zone power |
2100 W |
| Front cooking zone power setting |
3700 W |
| Back cooking zone dimensions |
230 x 230 mm |
| Back cooking zone power |
2100 W |
| Back cooking zone power setting |
3700 W |
| Maximum static pressure |
375 Pa |
| Power levels |
1 – 9, P |
| Recirculation connection |
650 x 90 mm |
| Filter medium |
Activated charcoal filter with ion exchanger |
| Material |
Filter panel with fine filter |
| Filter area |
2 x 0.4 m² |
| Service life |
Max. 150 h / 1 year |
| Material Oberfläche |
SCHOTT CERAN® |
